20 LPM 8600 - Offline Filtration Trolly System
Specifications
- Fluid\Service:General Hydraulic Oil / Lube Oil
- Operating Temparature:10 - 70 degree C
- Mac Pressure: 5 bar (g)
- Fluid Viscosity: 40 to 90 CST
- Flow Rate: 20 LPM
- Power Supply: 415V AC 3 Phase
- Supply Voltage Tolerence: +10%
- Motor Rating: 0.75KW
- On / Off Control Station: Manual Operation
40 LPM 8600 - Offline Filtration Trolly System
Specifications
- Fluid\Service:General Hydraulic Oil / Lube Oil
- Operating Temparature:10 - 70 degree C
- Mac Pressure: 5 bar (g)
- Fluid Viscosity: 40 to 80 CST
- Flow Rate: 40 LPM
- Power Supply: 415V AC 3 Phase
- Supply Voltage Tolerence: +10%
- Motor Rating: 0.75KW
- On / Off Control Station: Auto Manual Operation

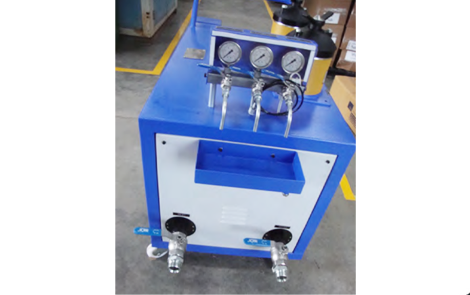

55 LPM Offline Filtration Trolly System
Specifications
- Fluid\Service:General Hydraulic Oil / Lube Oil
- Operating Temparature:10 - 70 degree C
- Mac Pressure: 5 bar (g)
- Fluid Viscosity: 40 to 120 CST
- Flow Rate: 55 LPM
- Power Supply: 415V AC 3 Phase
- Supply Voltage Tolerence: +10%
- Motor Rating: 1.1KW
- On / Off Control Station: Auto Manual Operation

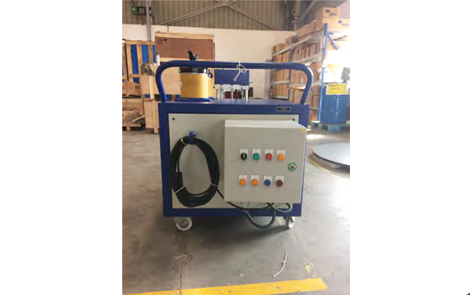

100 LPM Offline Filtration Trolly System
Specifications
- Fluid\Service:General Hydraulic Oil / Lube Oil
- Operating Temparature:10 - 70 degree C
- Mac Pressure: 5 bar (g)
- Fluid Viscosity: 40 to 280 CST
- Flow Rate: 100 LPM
- Power Supply: 415V AC 3 Phase
- Supply Voltage Tolerence: +10%
- Motor Rating:2.2KW
- On / Off Control Station: Auto Manual Operation

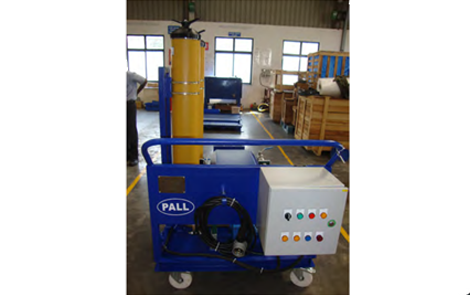

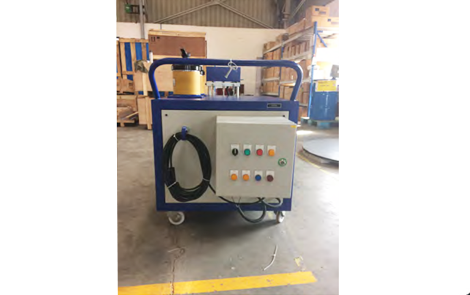

150/200 LPM Offline Filtration Trolly System
Specifications
- Fluid\Service:General Hydraulic Oil / Lube Oil
- Operating Temparature:10 - 70 degree C
- Mac Pressure: 5 bar (g)
- Fluid Viscosity: 40 to 280 CST
- Flow Rate: 150 LPM/200 Lpm
- Power Supply: 415V AC 3 Phase
- Supply Voltage Tolerence: +10%
- Motor Rating:3.7KW
- On / Off Control Station: Auto Manual Operation

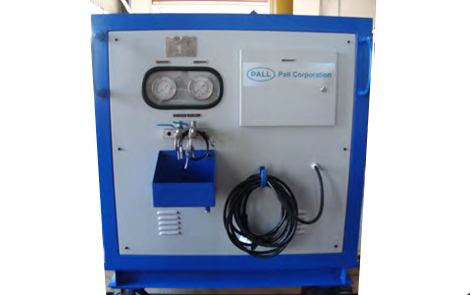

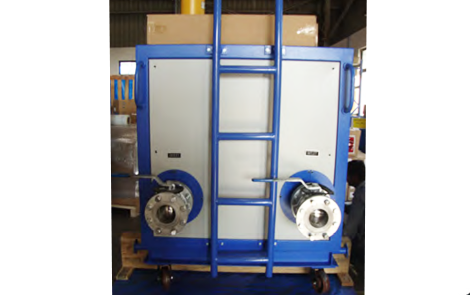

350/400 LPM Offline Filtration Trolly System
Specifications
- Fluid\Service:General Hydraulic Oil / Lube Oil
- Operating Temparature:10 - 70 degree C
- Mac Pressure: 6 bar (g)
- Fluid Viscosity: 40 to 320 CST
- Flow Rate: 350 LPM/450 Lpm
- Power Supply: 415V AC 3 Phase
- Supply Voltage Tolerence: +10%
- Motor Rating:7.5KW/9.3KW
- On / Off Control Station: Auto Manual Operation
